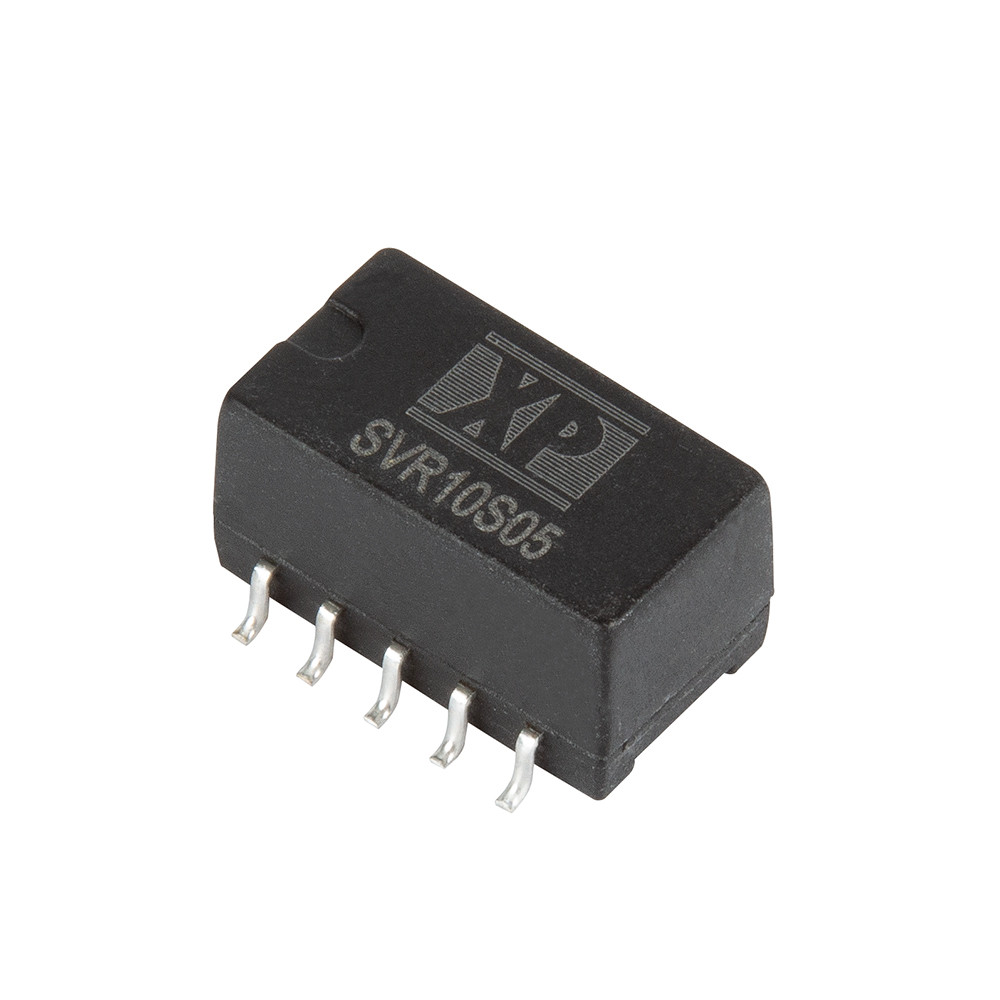

SVR10 Series
Low cost surface mount 1A SVR series SMD10 switching regulators
The 1A SVR10 switching regulators provide a competitive, low-cost, non-isolated point of load (POL) solution without compromising on quality and performance.
An industry standard pin-out enables easy substitution for competitors’ products.
They are a compact, cost-effective means of step-down voltage conversion in all sorts of ITE & industrial electronic equipment, for instance: Portable & battery-operated equipment; Sensors; Robotics; Telecommunications; Instrumentation; Embedded computing; Distributed DC supply systems requiring regulation but not needing isolation.
Features
- Non-isolated 1.0A switching regulator
- Regulated single outputs 1.5 to 12VDC
- ±10% output trim
- Input range up to 36VDC
- SMD10 package
- Remote On/Off
- Short circuit protection
- Efficiency to 95%
- Class B conducted & radiated emissions
- -40°C to +85°C operating temperature
- 3 year warranty
Image | Model Name | Power | Input Voltage | Output Voltage | Output Current | Datasheet | Stock Check | RFQ |
---|---|---|---|---|---|---|---|---|
![]() |
SVR10S1V5 | 1.5 W | 4.75 to 32 VDC | 1.5V | 1A | Datasheet | Stock | RFQ |
![]() |
SVR10S1V8 | 1.8 W | 4.75 to 32 VDC | 1.8V | 1A | Datasheet | Stock | RFQ |
![]() |
SVR10S2V5 | 2.5 W | 4.75 to 32 VDC | 2.5V | 1A | Datasheet | Stock | RFQ |
![]() |
SVR10S3V3 | 3.3 W | 6.5 to 36 VDC | 3.3V | 1A | Datasheet | Stock | RFQ |
![]() |
SVR10S05 | 5 W | 8 to 36 VDC | 5V | 1A | Datasheet | Stock | RFQ |
![]() |
SVR10S6V5 | 6.5 W | 10 to 36 VDC | 6.5V | 1A | Datasheet | Stock | RFQ |
![]() |
SVR10S09 | 9 W | 13 to 36 VDC | 9V | 1A | Datasheet | Stock | RFQ |
![]() |
SVR10S12 | 12 W | 16 to 36 VDC | 12V | 1A | Datasheet | Stock | RFQ |
